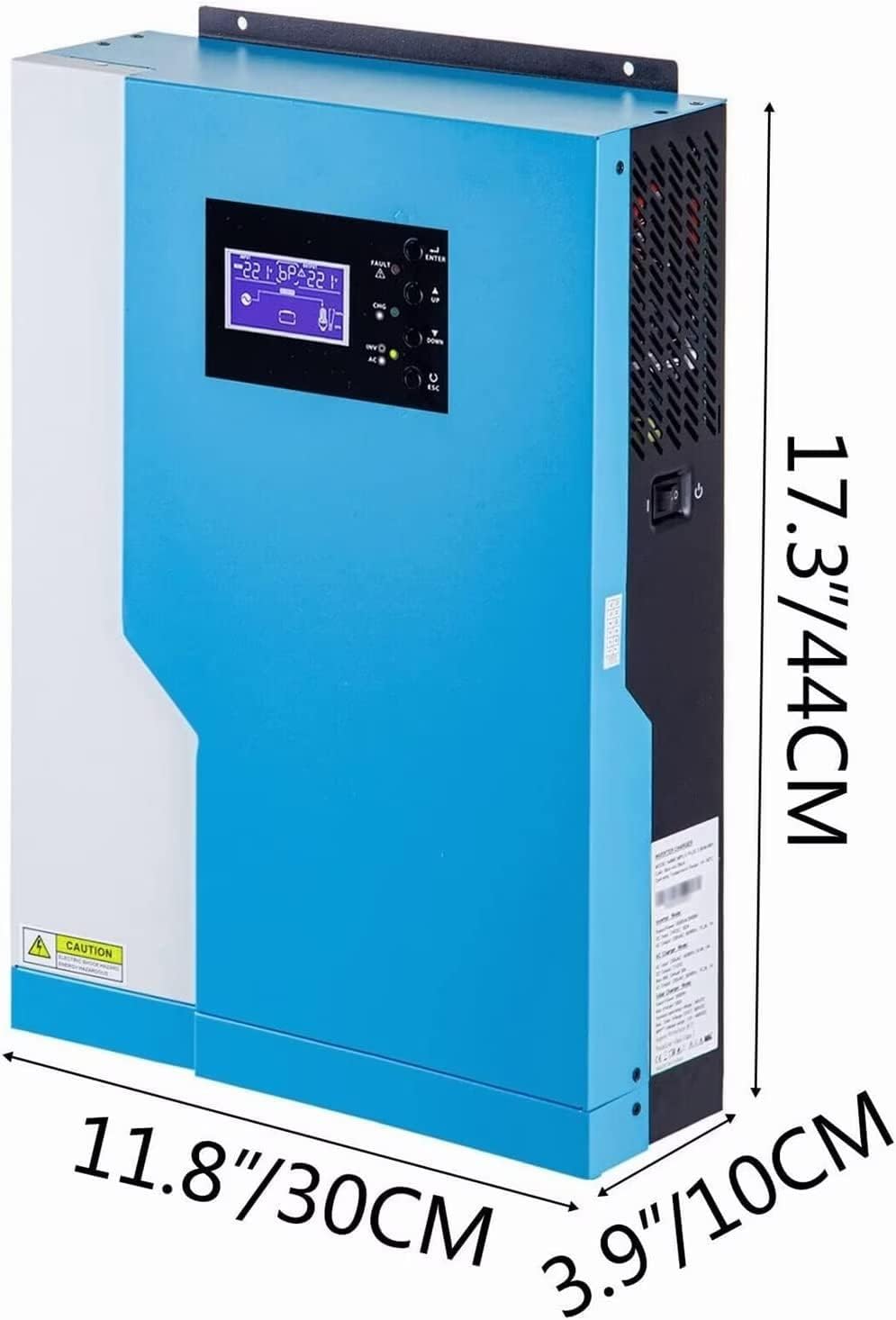

Solar inverters 5.5KW Hybrid Solar Inverter 220VAC 48VDC Built-in MPPT 100A Solar Charge Controller 500V PV Input Pure Sine Wave(3.5KW 24V)

InverterFeatures: 1. Full digital voltage and current double closed loop control advanced SPWM technology output of pure sine wave. 2. Two output modes: mains bypass and inverter output; uninterrupted power supply. 3. Available in 4 charging modes: Only Solar Utility Priority PV Priority Utility & Solar hybrid charging 4 Advanced MPPT technology with an efficiency of 999 5 Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status 6 Manual ON/OFF switch controlling AC output. 7. Power saving mode available to reduce empty load loss. 8. Intelligent variable speed fan to efficiently dissipate heat and extend system life. 9. Lithium battery activation by PV solar or mains allowing access of lead-acid battery and lithium battery. 10.Complete protections including short circuit protection over voltage and under voltage protection overload protection reverse protection etc. Product Parameters: Mode Name VM-3.5KVA-PLUS VM-5.5KVA-PLUS Rated Power 3500VA/3500W 5500VA/5500W INPUT Voltage 230VAC Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC(For Home Appliances) Frequency Range 50Hz/60Hz(Auto sensing) OUTPUT AC Voltage Regulation(Batt mode) 230VAC plusmn 5% Surge Power 7000VA 11000VA Efficiency(Peak)PV to INV 97% Efficiency(Peak)Battery to INV 94% Transfer Time 10 ms(For Personal Computers);20 ms(For Home Appliance) Waveform Pure sine wave BATTERY@AC CHARGER Battery Voltage 24VDC 48VDC Float Charging Voltage 27VDC 54VDC Ovrecharge Protection 33VDC 63VDC Maximum Charge Current 80A 80A SOLAR CHARGER Maximum PV Array Power 5000W 6000W MPPT Range@Operating Voltage 120~450VDC Maximum PV Array Open Circuit Voltage

• Inverter

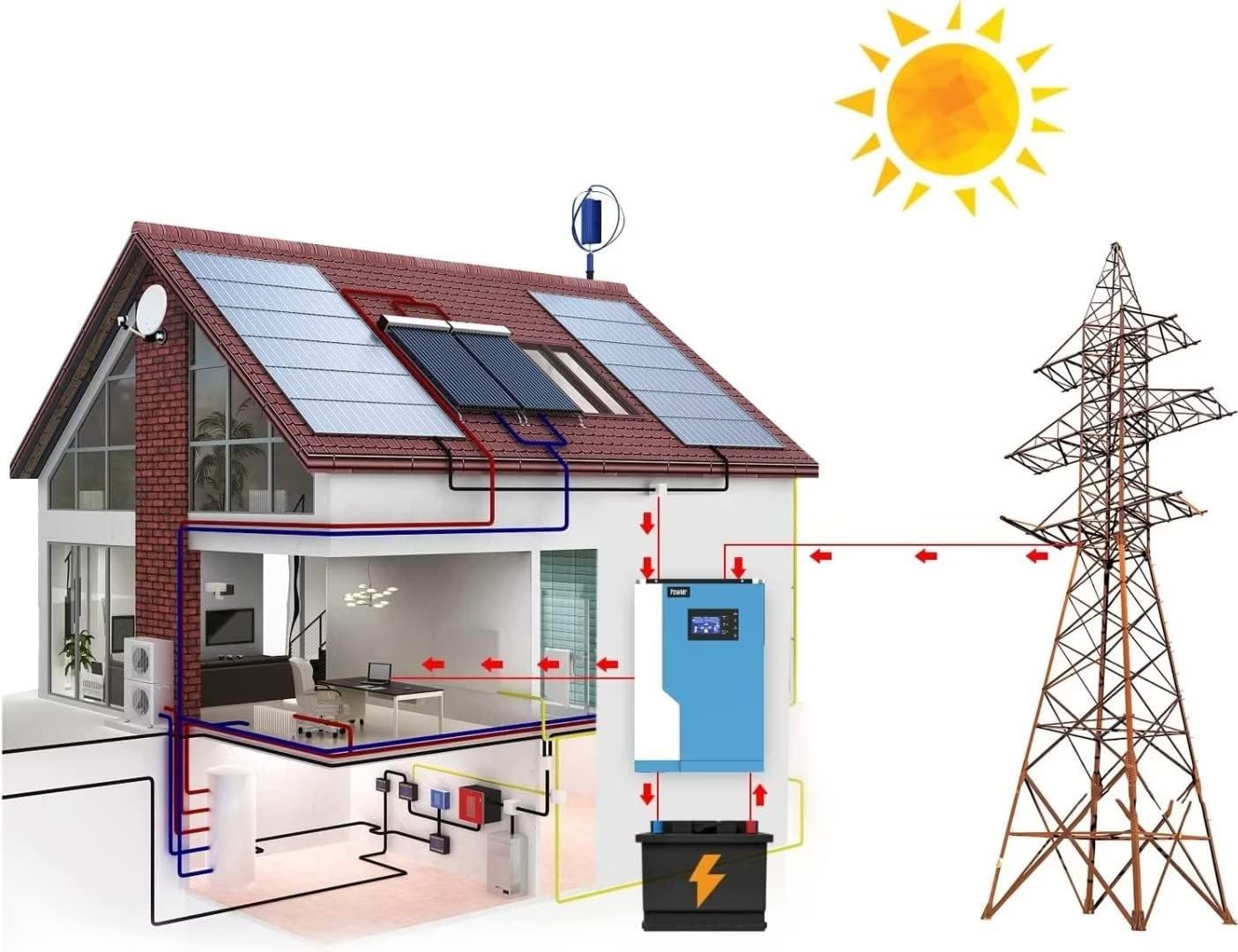

• This is a multi-functional all-in-one machine combining functions of inverter solar charger and battery charger Applied to Utility/Generator/Solar Energy.
• And compatible to mains voltage or generator power Auto restart while AC is recovering.
• with Battery discharge power mode Can auto regulate depth of discharge of the battery bank.
• Batteryless support: the inverter can power the loads from PV array / ac grid without battery connected
• This solar inverter can power all kinds of appliances in home or office environment including motor-type appliances such as tube light fan refrigerator and air conditioner.
