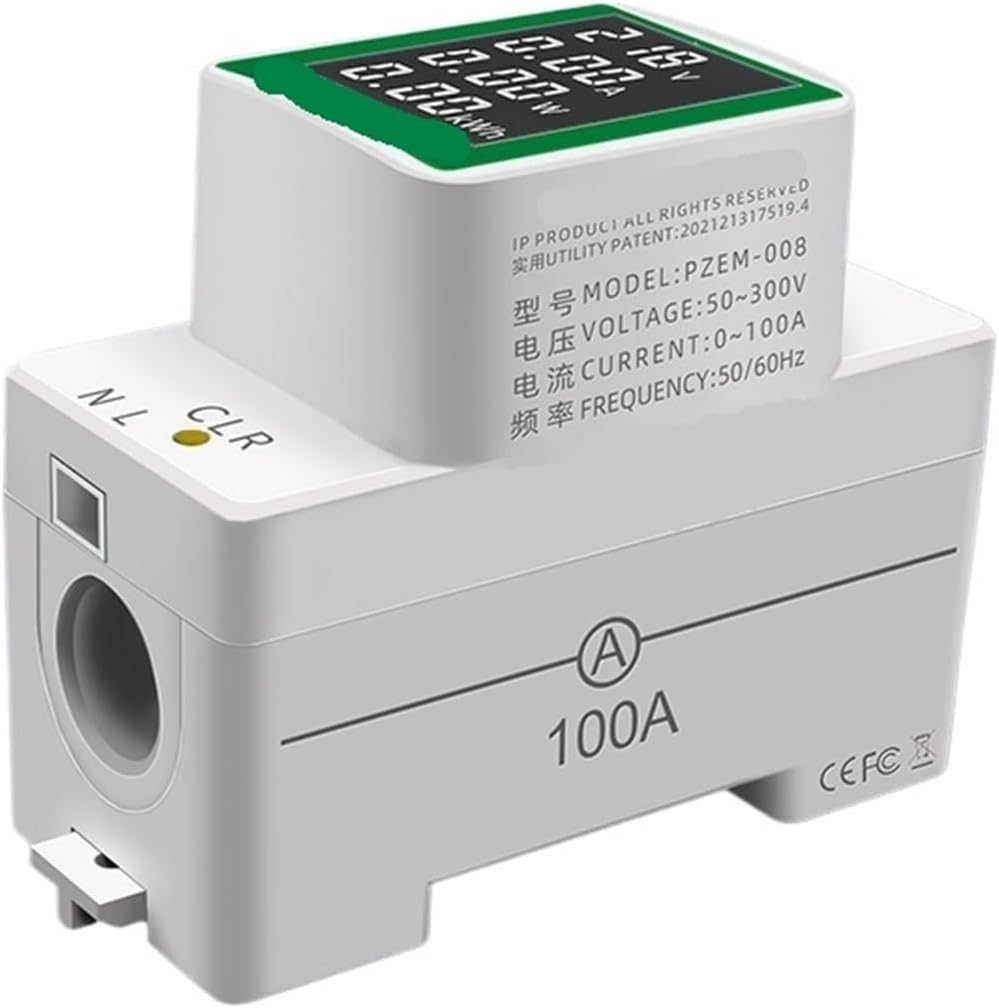

PZEM-008 Digital Energy Meter (Watt/KWh/Power Meter) 50-300V 100A

Meter SocketsPZEM-008 DIN Rail Digital Power Meter, Wattage/KWh/Power Meter Monitor, Ammeter/Voltage Meter, AC 50-300V 100AVoltageMeasurement range: AC50-300VStarting test voltage: 50VAccuracy: ±1%CurrentMeasurement range: 0-100ADisplay format:<;10A is displayed as: 9.99A<;100A is displayed as: 99.9AStart-up test current: 0.02AAccuracy: ±1%Active powerMeasurement range: 0-30kWDisplay format:<;10W display, e.g., 9.99W<;100W display, e.g., 99.9W<;1000W display, e.g., 999W<;10000W display, e.g., 9.99kWA 10000W display would look like: 30.0kWStartup test power: 0.5WAccuracy: ±1%vitalityMeasurement range: 0-1999kWhDisplay format:<;10kWh will be displayed as: 9.99kWh<;100kWh will be displayed as: 99.9kWh<;1000kWh will be displayed as: 999kWhFor quantities less than 10000kWh, the display would be: 1999kWhData will be retained if the test range is exceeded; otherwise, it will be reset.Accuracy: ±1%Other functions1. Backlight controlA short press of the button can turn the backlight on or off.2. Reset EnergyPress and hold the button for more than 3 seconds until the battery indicator flashes, then release the button. Press the button again briefly to reset the battery level to zero. Otherwise, the flashing will stop after 3 seconds, and the battery level will not be reset.It has been reset.3. Data storage can save power data and backlight status when power is lost. Battery included: No Model: PZEM-008Dimensions: 78*34mmOperating temperature: -10 to 60 degrees CelsiusOutput voltage: 50-300VAccuracy level: 1.0Energy measurement range: 0-1999 kWhNumber of phases: Single phaseModel: PZEM-008Maximum operating current: 80A - 99ARated voltage: 220VPower supply: Alternating currentDisplay type: Number onlyDIY supplies: electrical appliancesPlace of origin: Mainland ChinaCertifications: CE, FCCPower supply: Alternating currentProduct Name: Single-phase Electronic Energy MeterDisplay screen: LCD display screenType: DIN rail mounted energy meterFrequency: 45-65HzInstallation method: 35mm DIN railPower range: 0-30kWEnergy range: 0-1999 kWh
