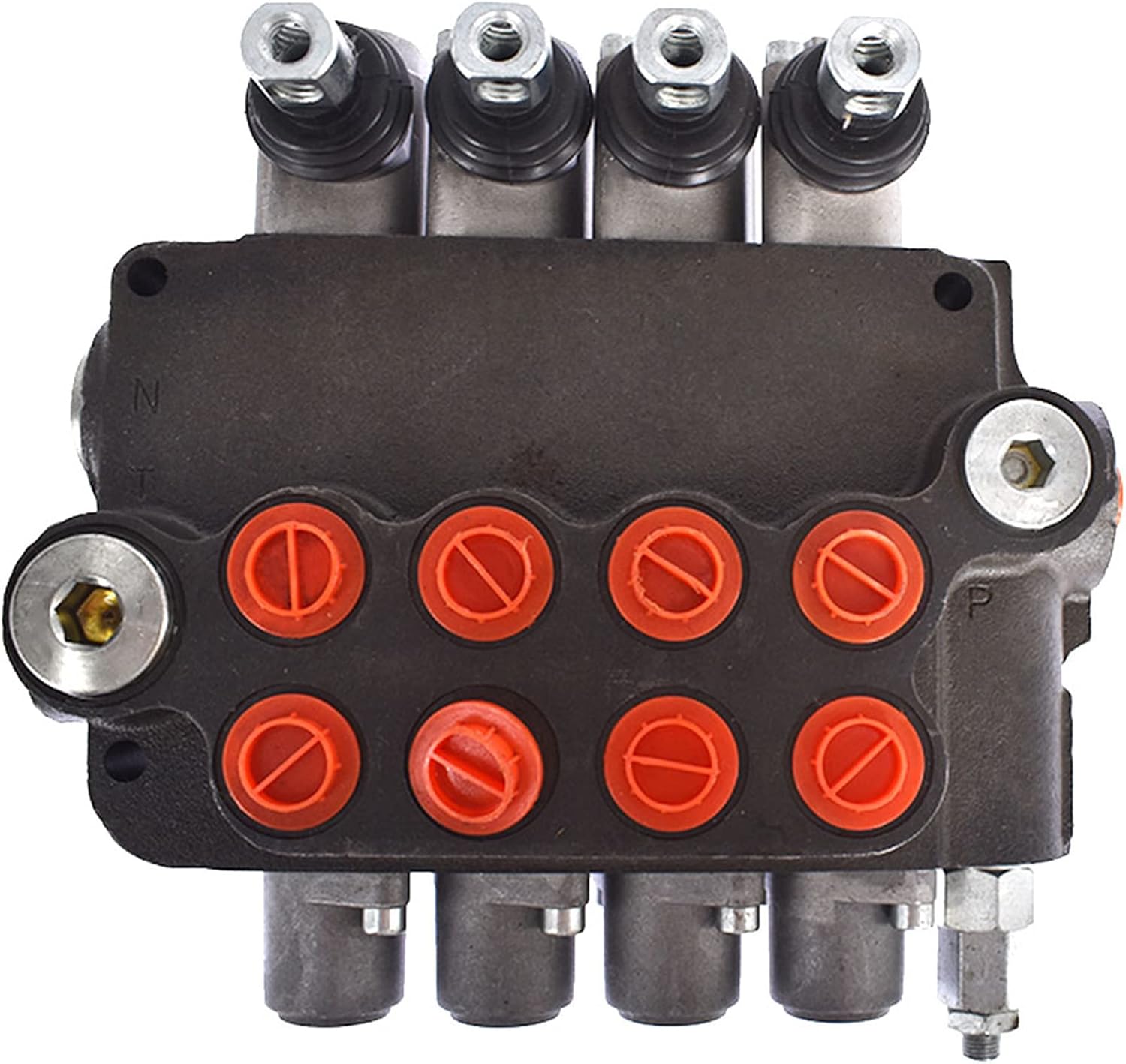

kimllier 4 Spool Hydraulic Valve 21GPM 3600PSI Hydraulic Directional Control Valve SAE Ports Double Acting Valve
Product details
| Management number | 231697359 | Release Date | 2026/06/18 | List Price | US$53.56 | Model Number | 231697359 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
4 Spool Hydraulic Valve 21GPM 3600PSI Hydraulic Directional Control Valve SAE Ports Double Acting ValveFeatures:Durable cast iron construction provides long-term usage.The relief valve range can reach up to 3600PSI and the maximum flow is up to 21GPM.All spools are standard double acting with spring return to neutral place which are ideal for double acting cylinders.Used for small tractors, tractors loaders, log splitters and other mobile.Specification:Nominal flow: 21GPMRelief valve: Adjustable3600PSI MAX Pressure4 Way 3 PositionsInlet port SAE 10Outlet port SAE 12Working ports SAE 10Package Includes:1 x 4 Spool 21GPM Hydraulic Directional Control Valve
- This loader control valve come with 4 spools, with cast iron construction for long-time use.
- The relief valve range is up to 3600PSI and the maximum flow is up to 21GPM.
- Inlet SAE 10, outlet SAE 12, work ports SAE 10.
- It is a 4-way, 3 place valve for operating double acting cylinders.
- Fit for small tractors, tractors loaders, log splitters, and etc.
| ASIN | B0B18L3K65 |
|---|---|
| Size | 4 Spool 21 GPM |
| Brand Name | kimllier |
| Unit Count | 1.0 Count |
| Valve Type | the relief valve |
| Manufacturer | kimllier |
| Model Number | SAE |
| Material Type | Cast Iron |
| Exterior Finish | Cast Iron |
| Item Dimensions | 11.02 x 9.45 x 4.72 inches |
| Number of Ports | 4 |
| Maximum Pressure | 3600 Pound per Square Inch |
| Specification Met | sae |
| Inlet Connection Size | 0.63 Inches |
| Inlet Connection Type | Female Iron Pipe |
| Outlet Connection Size | 0.5 Inches |
| Outlet Connection Type | SAE |
| Manufacturer Part Number | KM-1521709-120091-LR |
| Smart Home Compatibility | Not Smart Home Compatible |
