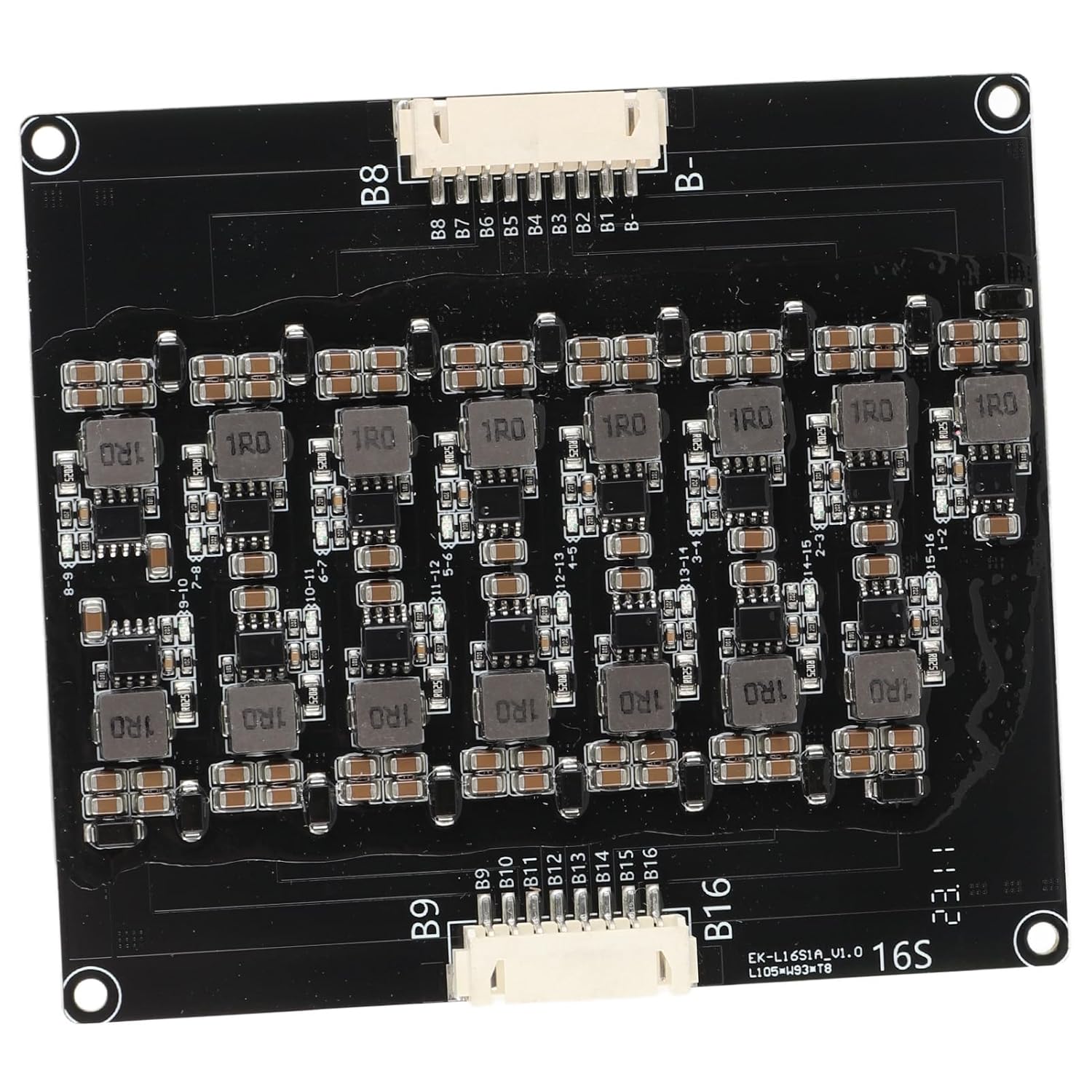

Battery Equalizer LFP Inductive General Purpose Li Ion Battery Active Balancing Board High Accurate Stable Work Performance 1.2A (16s)

Specification:Item Type: Battery EqualizerMaterial: ABSApplicable Battery: NCM(Li ion) , LFP, not suitable for LTO.Recommended Battery Capacity: Below 30AHQuiescent Operating Current: 0.01mAPackage List：1 x Battery Balancer1 x CableNote:1. It is not recommended to be compatible with low strings, the indicator light will flash and report an error. Be sure to check that each cell is properly wired and insulated before connecting the balancing board. Otherwise it will short circuit and burn the board2. If the battery is connected, it must be used with the battery management system protection board. The charging and discharging voltage difference triggers the balance board to work to achieve energy transfer balance

• Intelligent Balancing of Battery: The battery balancer uses voltage acquisition by the controller to determine the difference between the battery cells and the battery cells that need to be balanced, which can effectively reduce the difference between the battery cells
• High Accurate: The balance voltage accuracy of the battery equalizer is within 30mV, the high accurate energy transmission is flat and horizontal, and the exclusive balance IC
• Ultra Low Internal Endurance: The battery balancer has built in improved ultra low internal endurance MOS, and the balance current capability is 0A to 1.2A
• Automatic Hibernate Function: When the voltage difference between two adjacent battery cells is less than 0.03V, the voltage balancer automatically enters the hibernate state
• Clear Running Status: When the indicator light is on, it means the balance work is on, when the indicator light is off, it means the balance circuit is dormant, and the flashing indicator light means power failure or circuit failure
